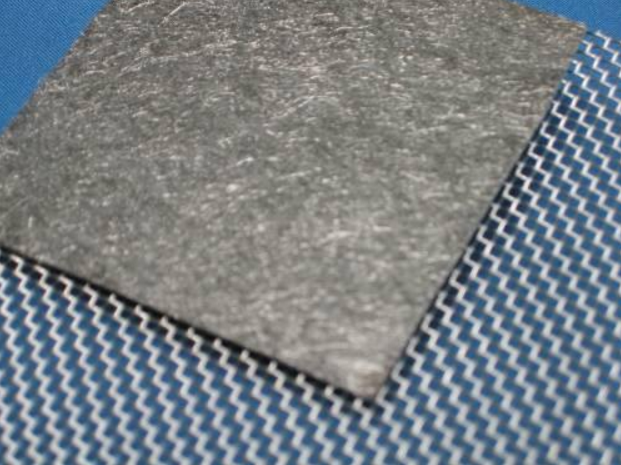

MeliFil – A new filtration material for hot-gas filtration

Fabric filter are established for dust removal in industrial devices for years, but they ar facing
problems when filtered gas ist hot an/or liaded with flammable particles. Teflon filters reach a maximum temperature of 260°C and can easily be damaged through particles, when they burn small holes in the filtration media. These damages are difficult to sense and can in addition lead to deactivation of the system.


These problems are being solved by the new hot gas filtration MeliPlate/MeliFil materials, whichs reaches a maximum temperature of 600°C and are resistant against flammable particles, because they are made of pure metallic fibre.

Due to the resistance of MeliFil filters against higher temperature, they offer the possibility to use the thermal energy of the gas after the filtration instead of cooling it down before. The equipment for cooling the gas can be reduced or even omitted.

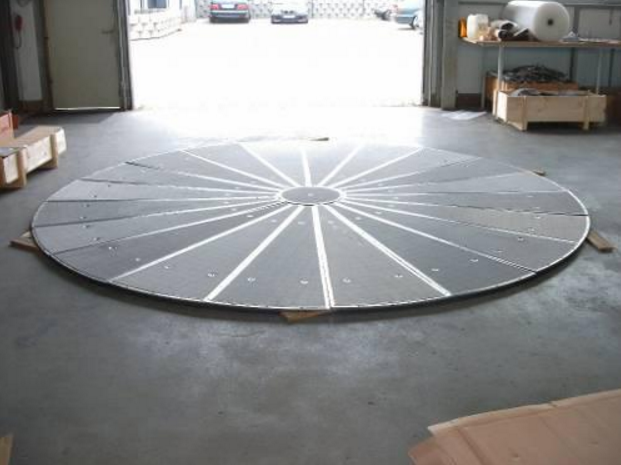

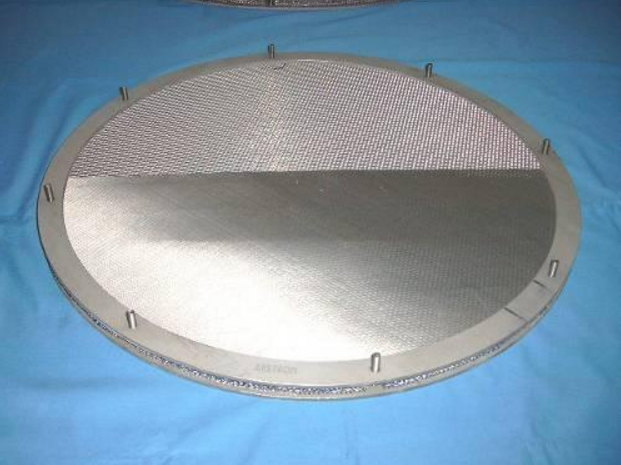

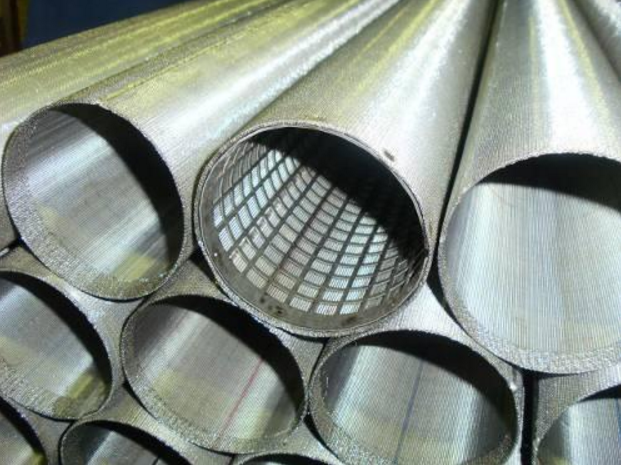

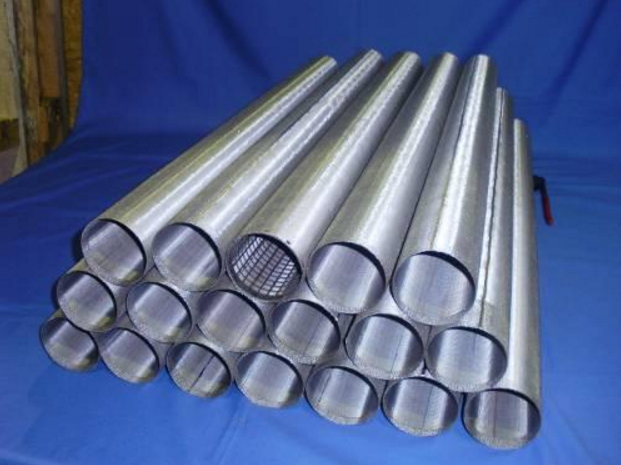

MeliPlate – Wire mesh laminates

Due to a highly developed thermical joining technology we are able to connect different wire meshs to a durable laminate. this process is being operated under inert gas, which guaranties a constant quality.


Right now MeliPlate is used for solid/liquid separation, for fluidisation of bulk material and for hotgas filtration, but it has the potential to replace sintered wire mesh Iaminates in all their applications.

Due to a highly developed thermical joining technology we are able to connect different wire meshs to a durable laminate. this process is being operated under inert gas, which guaranties a constant quality.


Right now MeliPlate is used for solid/liquid separation, for fluidisation of bulk material and for hotgas filtration, but it has the potential to replace sintered wire mesh Iaminates in all their applications.

Standart dimensions

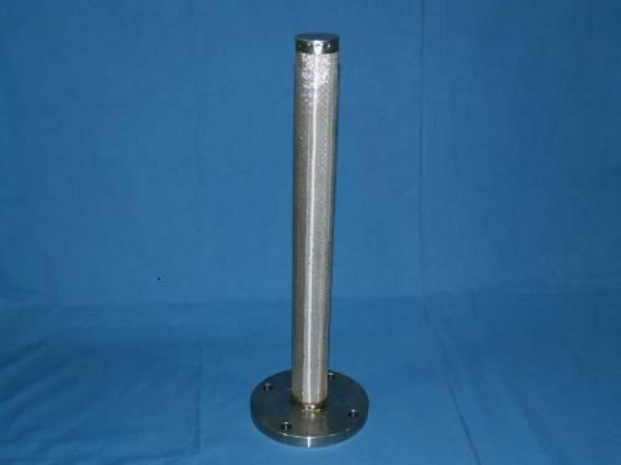

Hot gas filter

 Typ LTTyp HT
max. Operation temp450°
900°
Ø mm 100/125/150100/125/150
length

freely selectable

freely selectable

flangering flange mit 4, 6, 8 holesRingflansch mit 4, 6, 8 holes, other on request
bottomflat ground

flat ground

filter unit10/15/20/30 µm10 µm
pressure drop @1/2/3 m/min10 µm 6/30/70 Pa20/35/55 Pa
suppoer cage

freely selectable

freely selectable
overall atmospheredry, reducing, oxidizingdry, containing carbon, containing SO2
